PlusTrad 1 Series
20KVA to 200KVA
Embedded with Isolation Transformer
Embedded with Isolation Transformer

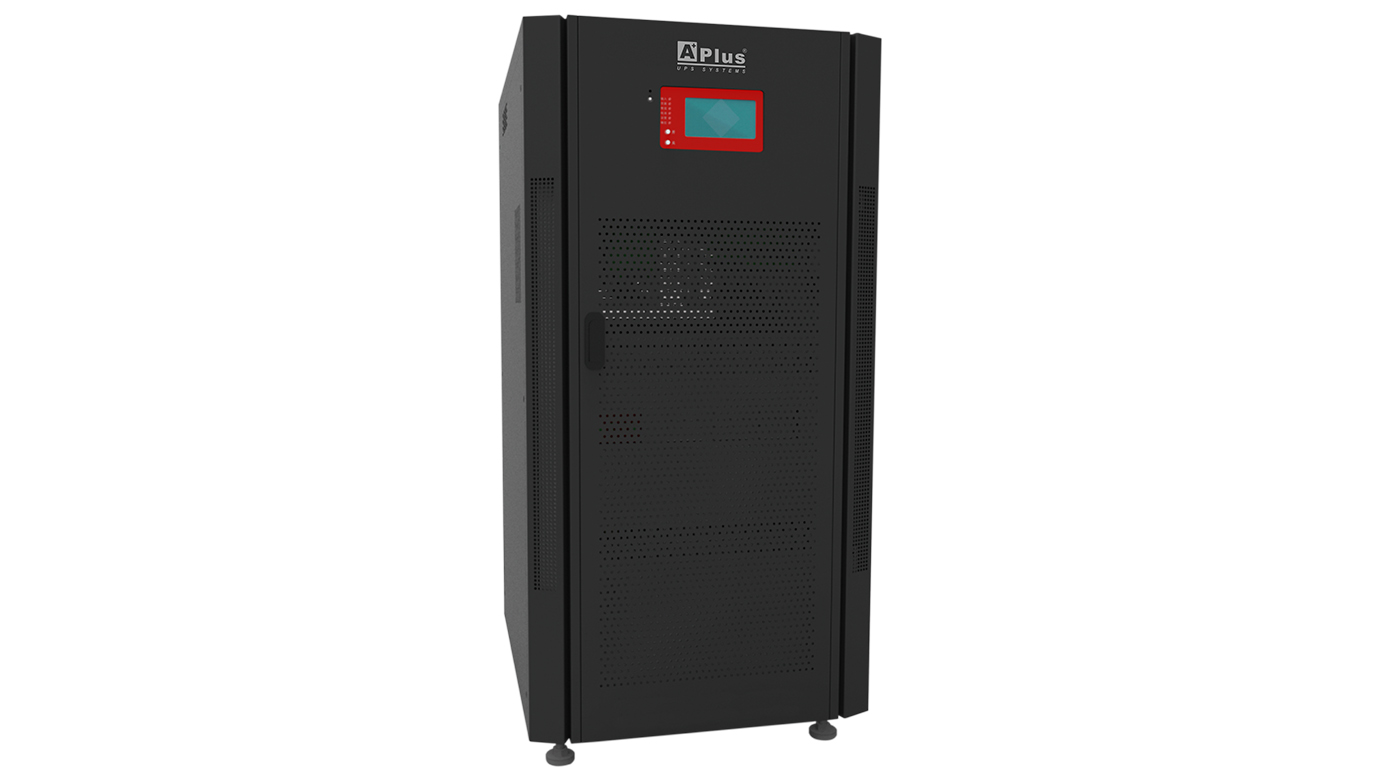

The PlusTrad 1 Series 20KVA to 200KVA UPS is low-efficiency pure online products with embedded isolation transformer that provide double conversion, and three-phase input and output. Its advanced battery charging system enables the UPS to supply a long backup time while the charging time is rather short, and its temperature compensation system can help to prolong the service life of the battery. With DSP technology, it can respond quickly to different power supply problems, making sure its load will work uninterruptedly. It is ideal for the fields of energy sources, transportation, office, medical equipment, engine-room, data center or any critical equipment.
● Cold start
● High efficiency >92%
● Low frequency design
● Intelligent battery control
● DSP 100% micro controlled
● Compatible with generators
● Range from 20kva to 200kva
● Accept 100% unbalanced load
● Dual power supply (Selectable)
● True galvanic isolation transformer design
● True double-conversion online technology
● Powerful communication system (RS232, SNMP, GPRS)
● High efficiency >92%
● Low frequency design
● Intelligent battery control
● DSP 100% micro controlled
● Compatible with generators
● Range from 20kva to 200kva
● Accept 100% unbalanced load
● Dual power supply (Selectable)
● True galvanic isolation transformer design
● True double-conversion online technology
● Powerful communication system (RS232, SNMP, GPRS)
| MODEL | PlusTrad 1-20KS~30KS | PlusTrad 1-40KS~80KS | PlusTrad 1-100KS~120KS | PlusTrad 1-160KS~200KS |
| Transference | 0ms cutless | |||
| Technology | True double-conversion online technology, conversion performed by IGBT | |||
| INPUT | ||||
| Voltage | 3x220/380Vac ±25% | |||
| Frequency | 50Hz ±15% | |||
| Conductors | Three phrases+N+E | |||
| OUTPUT | ||||
| Voltage (Selectable) | 3x220/380Vac ±1% (More voltage can be selected) | |||
| Frequency | 50Hz +/-0.1% | |||
| Waveform | Pure sine wave generated by high frequency PWM inverter | |||
| Harmonic Distortion | <2% Linear load / <5% Nonlinear load | |||
| Crest Factor | 3:1 | |||
| Power Factor | 0.8 | |||
| Overload Recuperation | Self-transference to UPS | |||
| Voltage Regulation | Load balance: ±1% | |||
| Overload Capacity | 125% for 12 minutes / 150% for one minute | |||
| Conductors | Three phrases+N+E | |||
| BATTERY | ||||
| Type | Maintenance-free sealed lead-acid battery | |||
| Quantity | 32pcs (29 ~ 32pcs adjustable) | |||
| Voltage | Nominal 384V, Float 435V (Adjustable) | |||
| Typical Recharge Time | 4 ~ 8 hours, 90% | |||
| Battery Handly | Autotest. Transfer Point Adjustable battery and alarm setting | |||
| Battery Protection | Fuse protection, battery switch, temperature compensation, regular inspection, software protection, overvoltage tripping | |||
| Rectification | Software protection, input switch, over current protection, temperature protection | |||
| PROTECTION | ||||
| Hardware Protections | Breaker for input, output, battery and bypass Fast acting fuses in DC, fans, temperature sensors, on-o switch and audible alarms |
|||
| Bypass | Static solid state, automatic and manual operation without interruption for maintenance External Bypass (Optional) |
|||
| Emergency Switch | Remote and/or local EPO | |||
| SUPERVISORY CONTROL AND COMMUNICATION | ||||
| Frontal Panel | Interactive LCD display (Touchscreen) | |||
| Alarms | Audible and visual alarm for abnormal conditions | |||
| Communications | RS232, SNMP-RJ45, GPRS module for mobile network remote monitoring | |||
| Efficiency | ECO mode >98%, Inverter >92%, AC-AC >91% | |||
| Altitude | 1000m (Height rises every 100m, power decreases 1%, maximum height is 4000m) | |||
| Noise | <60db at 1.5m from surface of unit | |||
| Relative Humidity | 0-95% (Non-condensing) | |||
| Temperature | 0°C-40°C | |||
| DIMENSION | ||||
| UPS (W*D*H) | 540*622*1125 | 664*865*1548 | 966*890*1748 | 1160*1043*1900 |
| UPS weight (kg) | 225/273 | 437/500/600 | 700/740 | 810/850 |
*The capacity of connected loading do not exceed the capacity of UPS.
